Product DescriptionCompany Info.<>
- Model:
- TBCP2
- Processing customization:
- No
- Production technology:
- see note
- Output signal:
- Analog type
- Protection grade:
- see note
- Linear degree:
- see note %F.S
- Lag:
- see note %F.S
- Repeatability:
- see note %F.S
- Sensitivity:
- see note
- Resolution:
- see note
summarize
TBCP2 -250is a snap-in RFcurrent monitoring probe with a very flat frequency response with a 3dB bandwidth of 250MHz and certain and optional characteristics in the frequency range of 10KHz to 250MHz. The RF current sensing probe is 32 mm in diameter and has a transmission impedance of 13 dB ohms in the range of 700 kHz to 250 MHz.>
RF Probe Current Monitoring TBCP2TBCP2 -500 is a snap-in RFcurrent monitoring probe with a very flat frequency response, 3dB bandwidth of 500MHz, and certain characteristics and optional characteristics in the frequency range of 10KHz to 500MHz. The RF current sensing probe is 32mm in diameter and has a transmission impedance of 17 dB ohms from 1MHz to 500 MHz.
RF Probe Current Monitoring TBCP2TBCP2 -750 is a snap-in RFcurrent monitoring probe with a very flat frequency response with a 3dB bandwidth of 750MHz and certain characteristics and optional characteristics in the frequency range of 10KHz to 750MHz. The RF current sensing probe is 32mm in diameter and has a transmission impedance of 15 dB ohms in the 1MHz to 750 MHz range.

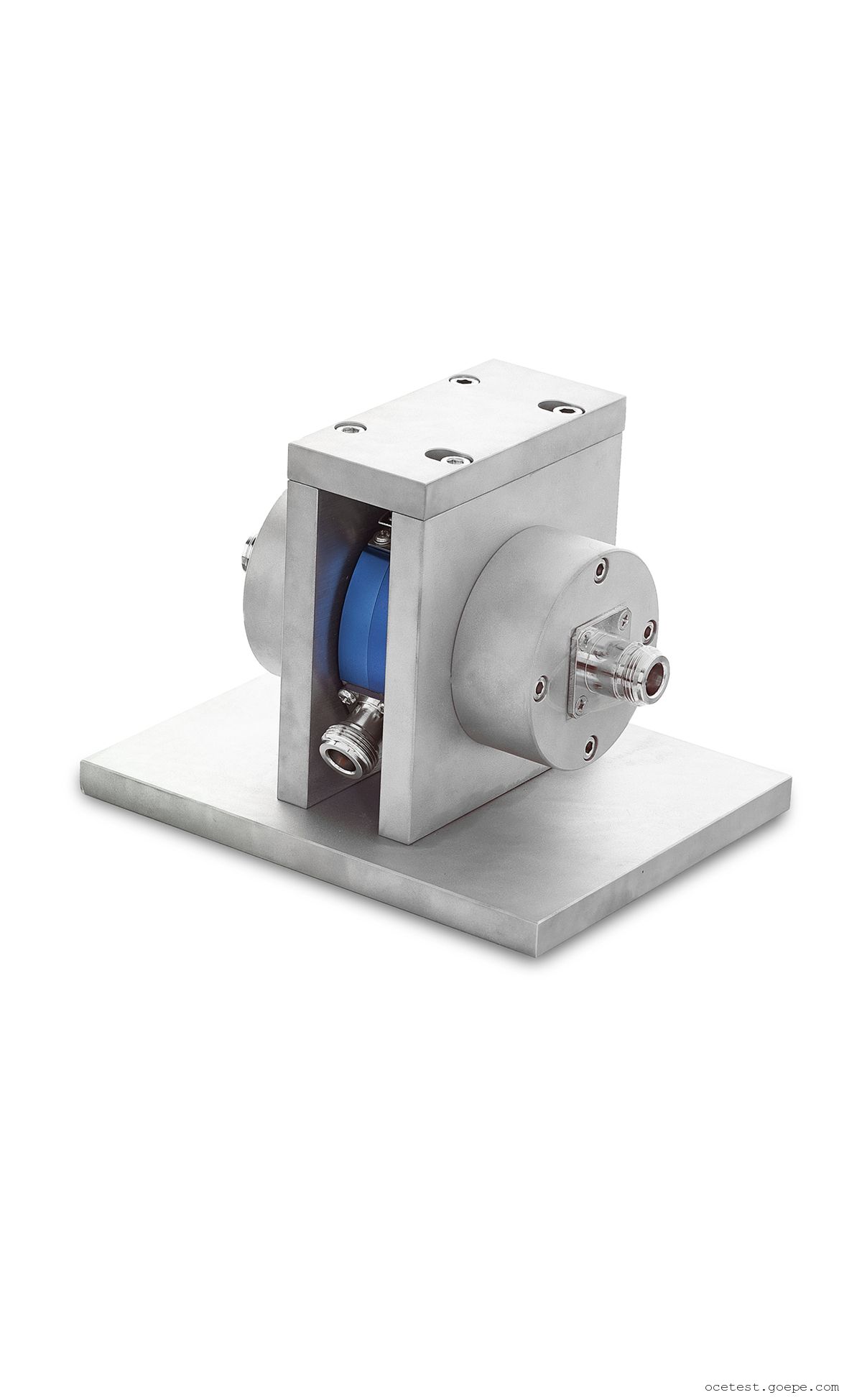

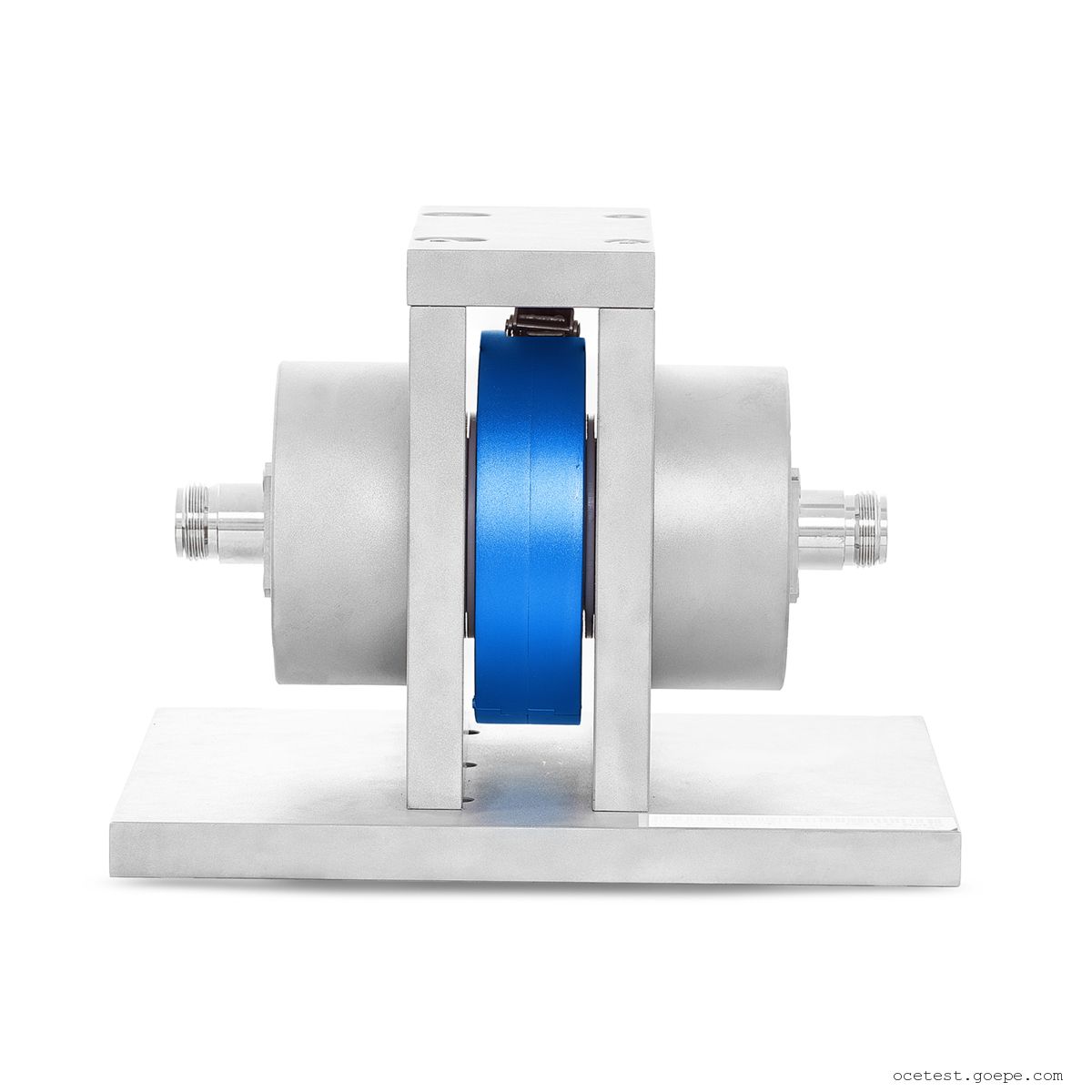

At the same time, the corresponding calibration fixture is provided
technical indexTBCP2-250 frequency domain 10KHz 250MHz aperture 32mm external diameter 73mm altitude 20mm weight 320g connector Nmother transmission impedance 0-16dBΩ@ 100KHz~250MHz * High primary current (DC-400KHz) 80A * High primary current (RF) 3A * High temperature 125℃ TBCP2-500 frequency domain 10KHz 500MHz aperture 32mm external diameter 73mm altitude 20mm weight 320g connector Nmother transmission impedance 0-20dBΩ@ 150KHz~500MHz * High primary current (DC-400KHz) 80A * High primary current (RF) 3A * High temperature 125℃ TBCP2-750 frequency domain 10KHz 750MHz aperture 32mm external diameter 73mm altitude 20mm weight 320g connector Nmother transmission impedance 0-22dBΩ@ 150KHz~750MHz * High primary current (DC-400KHz) 80A * High primary current (RF) 3A * High temperature 125℃ warranty 1year - Name（chinese）
