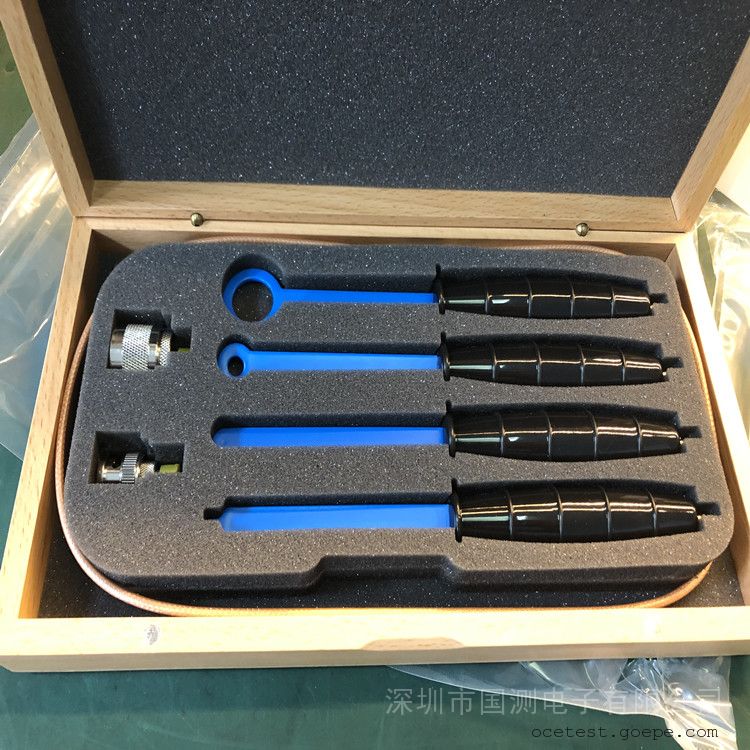

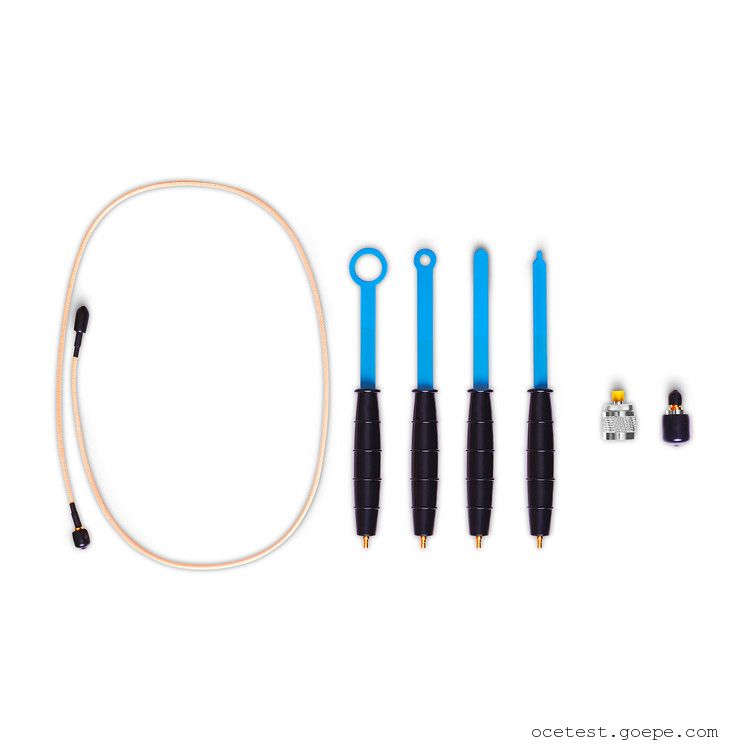

TBPS01 Near Field EMI Probes are available in H20, H10, H5 and E5 for magnetic (H) and electric (E) field probes for radiated emission EMC pre-conformance measurements. The probe is used in the near field of electromagnetic radiation sources. They are used to locate and identify potential interference sources in the building blocks of electronic assemblies. These probes act similar to broadband antennas and are used to pick up radiation from components, PCB traces, housing openings or slots, and any other component that may emit RF. The probe is usually connected to a spectrum analyzer. Scanning a probe over the surface of a PCB assembly or housing can quickly determine where electromagnetic radiation is emitted. By replacing the probe with a smaller size, the range of emission sources can be further reduced. Other applications are RF immunity testing by feeding RF signals into the probe and radiating them into potentially sensitive parts of the circuit: In addition, near-field probe EMI emissions measurements can be used in the maintenance or commissioning field to track problems in the RF signal chain by reducing contact RF measurements. Signal level. Another application is the non-invasive measurement of RF components such as modulators or oscillators. Frequency, phase noise and spectral components can be measured with a low-noise preamplifier.
Applications:
EMI emission prediction/rectification
Probe size:
probe
size
Ring size
ring length

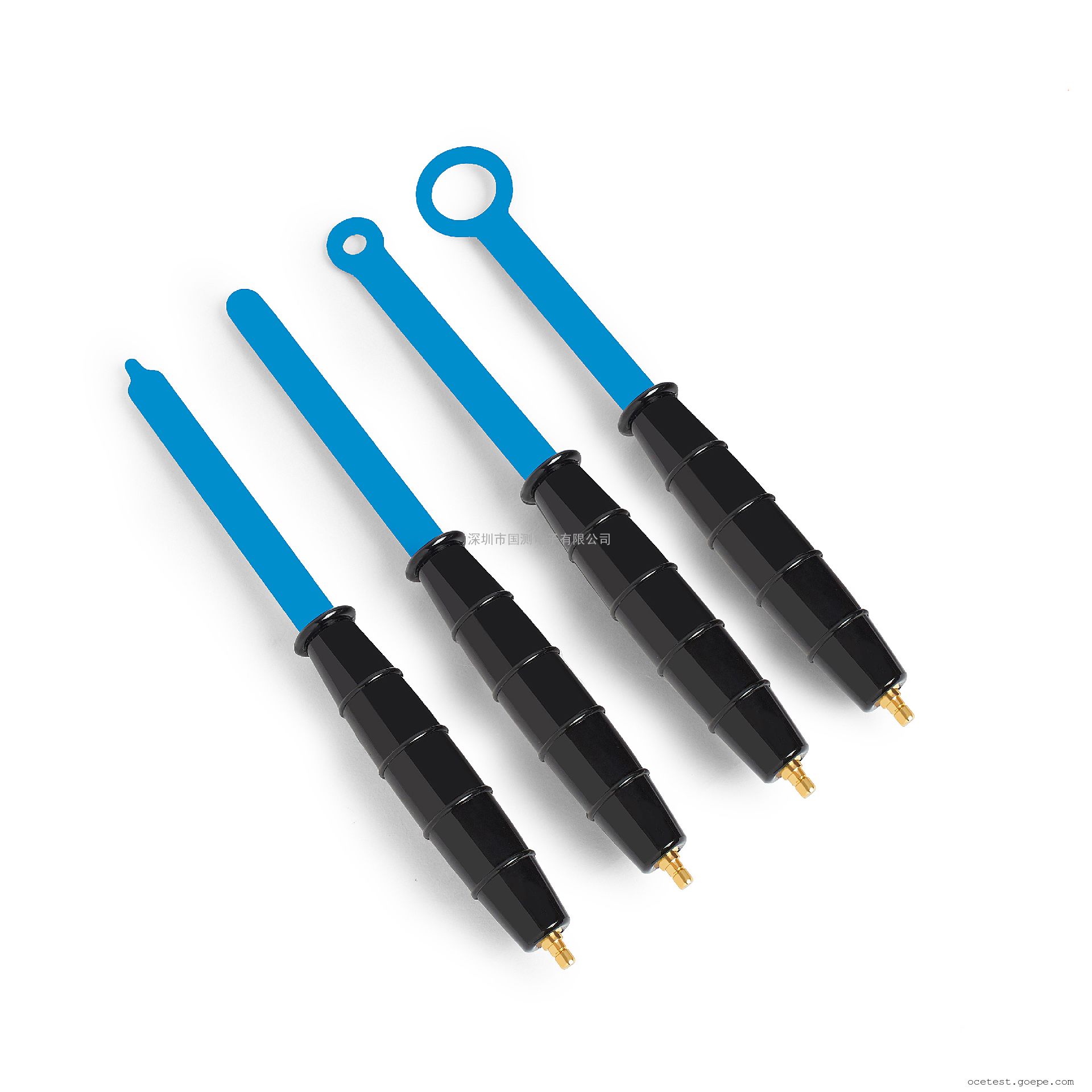

H20 Magnetic field probe
170mm
20 mm
N.A.
H10 Magnetic field probe
170mm
10 mm
N.A.
H5 Magnetic field probe
170mm
5 mm
N.A.
E5 Electric field probe
170mm
N.A.
5 mm
Frequency response:
Coupling attenuation:
