Product DescriptionCompany Info.<>tekbox Logperiodic antenna 200MHz-1300 MHz TBMA 3
summarize
TBMA3is an affordable log periodic measurement antenna pre-tested forEMCradiated noise consistency.
TBMA3 has a frequency range of 200(250)MHzto1.3 GHzand has VSWR and antenna factor values typical of log periodic measurement antennas .
CISPR 16 divides the frequency range into frequency bands and defines specific antennas for each band. For the frequency range above 300 MHz to 1 GHz ,CISPR 16 specifies the use of log periodic antennas (log periodic antennas) for radiated noise measurements.
TBMA3 is a medium size log periodic antenna with radiating elements and support arms made of powder coated aluminum alloy. It is equipped with a standard N-type female connector and comes with an antenna bracket and a mounting adapter. The standard ¼ threads on the bottom of the mounting adapter ” make it easy to attach to most standard tripods.

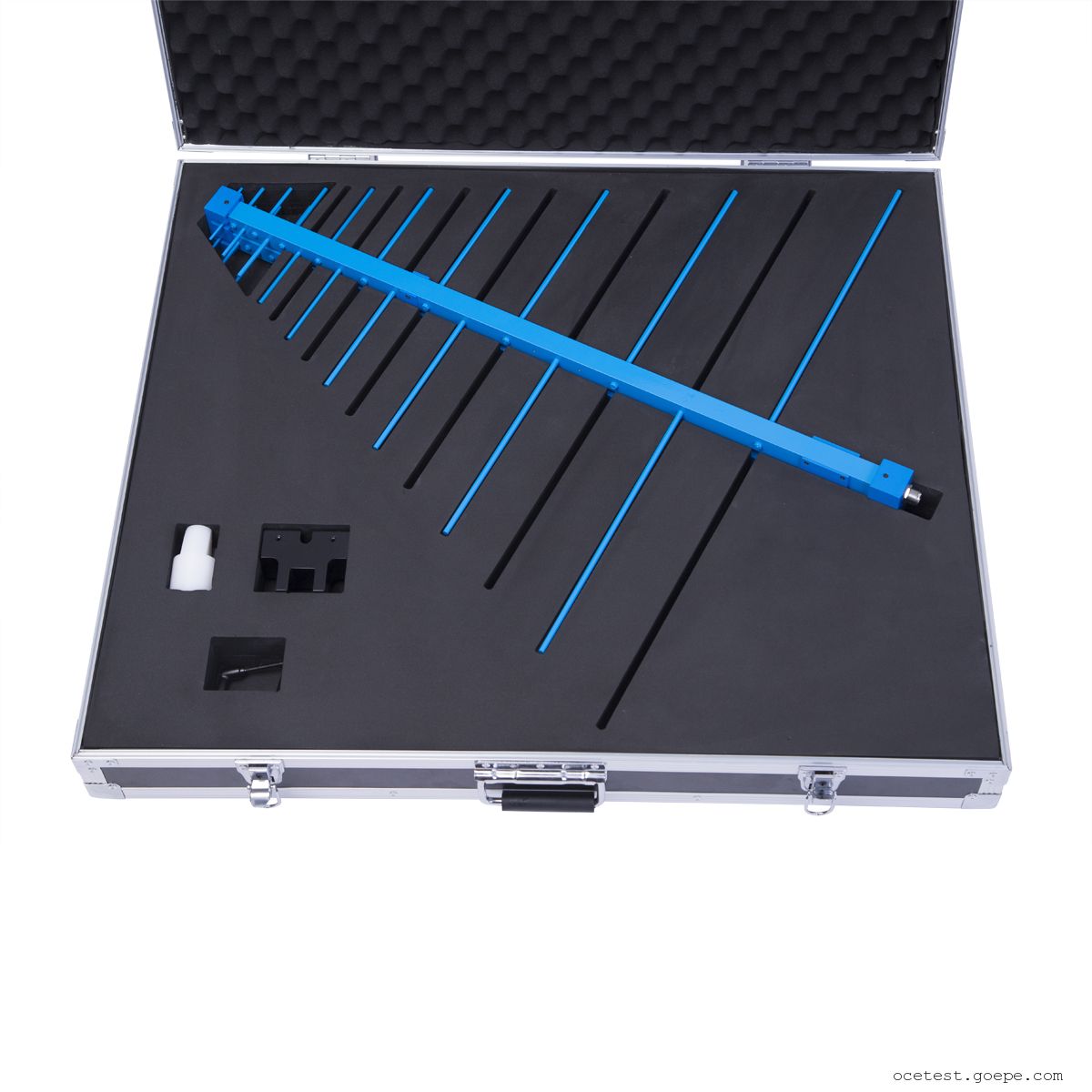

TBMDA3 is packed in a sturdy suitcase to ensure the safety of the antenna during transport.Product features:
EMCRadiated Noise Consistency Prediction Antenna
Compliance withCISPR 16
* Large continuous input 100W
Heavy-duty packaging, size portable
technical indexfrequency domain 200MHz – 1300MHz nominal impedance 50Ω * High input power 100W @ Continuous splice N-typemother gain 6 dBi ±1.5 dBi antenna factor 14.2 ~ 27.5 dB/m Standing Wave Ratio (VSWR) <1.95 : 1@Full Band testing standard Compliance with CISPR 16 size 86.374.9 cm (L/W) weight 1.78 Kg @Antenna fixed interface 1/4 screw warranty 1year standard configuration Antenna, manual, cable, adapter - Name（chinese）
