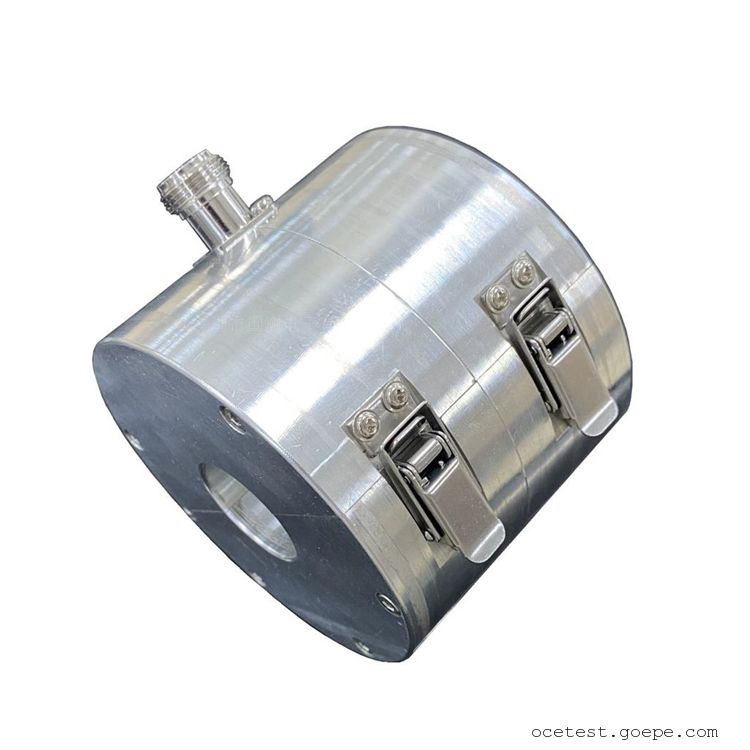

Product DescriptionCompany Info.<>Tekbox Current Injection Probe 10KHz-500 MHz TBBCI 1
TBBCI1-800K420 is a snap-inhigh-current injection probe that extends Tekbox's product range and makes it an affordable EMC pre-test device. Injection current probes are used to inductively couple large RF currents into conductors passing through their apertures. Conductors are the signal, control, and power circuits of the device under test used to test conducted sensitivity or immunity.
TBBCI1-800K420current injection probe is mainly used for immunity testing of automotive products in the frequency range of 1MHz to 400MHz. According to the standard ISO11452-4, the insertion loss is 5dB for most of its bandwidth. In the frequency range of 250 kHz to 230 MHz, the probe meets the insertion loss specifications of ISO11452-4. The current injection probes are individually calibrated for use in the frequency range of 10KHz to 500MHz with a rated input power of 100 W for a duration of 20 minutes.
The probe can also be used for RF current monitoring applications.
Tekbox Current Injection Probe 10KHz-500 MHz TBBCI 1
product feature- Frequency range10KHz-500MHz
- Individual calibration, split fixture design
- Meet MIL-STD-461 CS114, CS115, CS116
- Complies with ISO 11452-4:2005and IEC6100-4-6
- Typical insertion loss 5dB, typical transmission impedance 26dBOhm
- 27mmaperture, 3year warranty
- RF immunity test
type of current injection probe meet ISO11452-4/IEC6100-4-6 frequency domain 10KHz 500MHz insertion loss 5dB@typ, 50ohms (100ohms loop impedance) transmission impedance 29dBΩ@typ, 50ohms (100 ohms loop impedance) * Large input power 100Wfor 20analysis * High temperature 90℃ connecting port n-type inner diameter 27mm diameter 92mm altitude 76mm weight 1.2 Kg warranty 3years standard configuration Probe, manual, cable, adapter, calibration certificate option - calibration jig

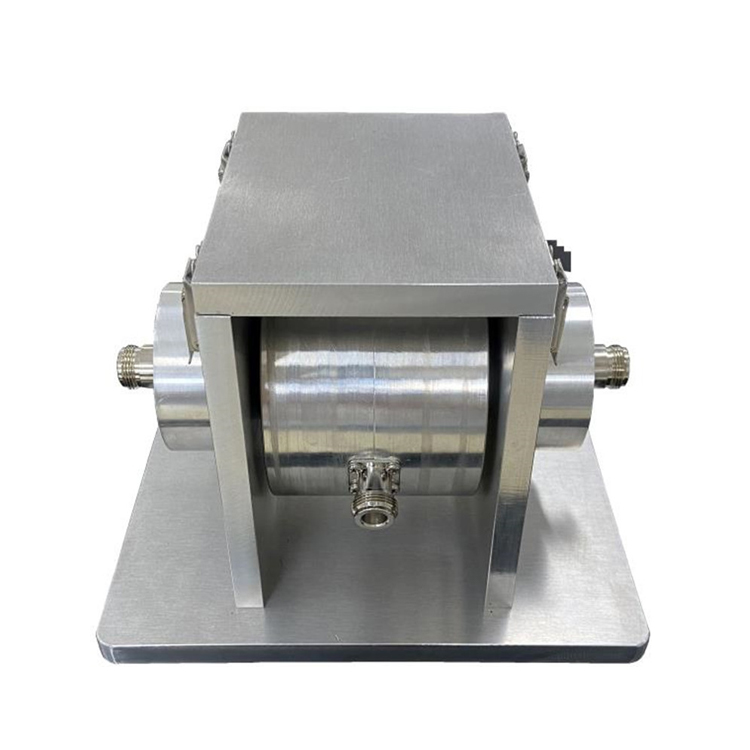

Ordering information:model describe TBBCI1-800K420 Current injection probe, calibration data, packing case TBBCI-CAL Current probe calibration fixture TBCDN-50-150 50ohm to 150ohm adapter, N-N, 4W TBATT-6dB 6dBAttenuator, N-N, Optional 10W/25W/50W/100W TBATT-30dB 30dBattenuator, N-N, optional 10W/25W/50W/100W TBMDA5 Broadband Modulated Power Amplifier, 150KHz-250MHz, 2W, AM/PM Modulation TBMDA6 Broadband Modulated Power Amplifier, 150KHz-250MHz, 25W, AM/PM Modulation EMCview PRO EMCTest Software - Name（chinese）
