Product DescriptionCompany Info.<>TekboxEMC Power Amplifier TBMDA4B
summarize
MDA TB4Bmodulated power amplifiers are designed as inexpensive signal sources for immunity testing of electronic components and products. Designed to be driven by the spectrum analyzer's tracking generator output or other signal sources, it has an input power range of-20 dBm to-10 dBm and can boost output signal power from 100KHz to 75MHz by up to 5W. MDA TB4B modulated power amplifiers are also ideal for driving Tekbox near field probes to find sensitive points on electronic circuit boards. At the same time, Tekbox TBTC0 TEM cell can be driven to generate an electric field of up to 550 V/m, TBTC1 can generate an electric field of 300 V/m, TBTC2 can generate an electric field of 150 V/m, TBTC3 can generate an electric field of 100 V/m. signal used for immunity t may be CW, AM or PM. Thus, TBMDA 4 B provides built-in modulation capability to generate 1 kHz AM or PM signals. In PM mode, TBMDA2 can also generate a 217Hz signal with a 12.5% duty cycle, simulating TDMA noise for mobile phones.

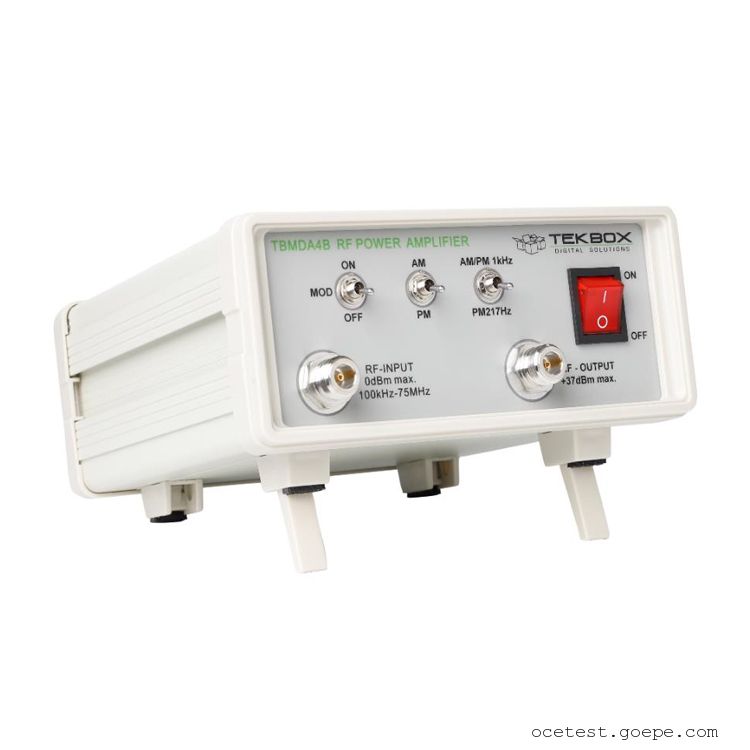

TekboxEMC Power Amplifier TBMDA4B
Features:- CWWave Continuous Amplifier (Modulation Off)
- 1 kHz,80% AMmodulation
- 1 kHz, 50%duty cycle pulse modulation
- 217 Hz, 12.5%duty cycle pulse modulation gain
technical index
- Frequency range: 100KHz-75MHz
- * Large input power: -10dBm, * Large tolerance 0dBm, 0dBm input, output is not recommended to open or load short circuit.& nbsp;
- RF interface:Type N, 50Ω
- Saturated output power@100KHz-10dBm: 36.6dBm(4.6W)
- Saturated output power@1MHz-10dBm: 37.6dBm(5.8W)
- Saturated output power@10MHz-10dBm: 37.6dBm(5.8W)
- Saturated output power@35MHz-10dBm: 37.1dBm(5.1W)
- Saturated output power@75MHz-10dBm: 36.6dBm(4.6W)
- Saturated output power@100MHz-10dBm: 31.6dBm(1.4W)
- 1dBOutput Compression Point@1MHz: 35.7dBm
- 1dBOutput Compression Point@35MHz: 34.8dBm
- 1dBOutput Compression Point@75MHz: 34.1dBm
- 2ndharmonic@35MHz@Pout=36dBm: < -18dBc
- 2ndharmonic@35MHz@Pout=30dBm: < -21dBc
- 3rdharmonic@35MHz@Pout=36dBm: < -19dBc
- 3rdharmonic@35MHz@Pout=30dBm: < -35dBc
- total harmonic distortion
8.4% @35 MHz, Pout=30 dBm typ.
12.3% @35 MHz, Pout=33 dBm typ.
18.1% @35 MHz, Pout=36 dBm typ.- Third-order intercept point: +53dBm,@25 MHz,Δ f = 200kHz typ.
- Noise coefficient@35MHz: 7.2dB
- Internal modulation frequency AM: 1 kHz20%
- Internal modulation frequency PM: 1 kHz10%, 217 Hz 20%
- Duty cycle, PM:50% 10%@1KHz;12.5% 20%@217Hz
- Power supply voltage: 110-240V @ AC
- Power consumption: 20W
- Operating temperature: -20℃ ~ +50℃
